Pharmacy Refrigerators
KIRSCH is the market leader for pharmaceutical refrigerators in Germany. Each refrigerator is particularly made to meet the demanding DIN 58345 regulation. Our products are market leading in temperature stability and quality.
The Pro Active line offers, depending on the individual model type, the following features
- Re-circulating air cooling
- Optimized ventilation plates to minimize interior temperature differences
- Easy-to-read LED temperature display
- Automatical defrosting and meltwater evaporation
- Easily accessible control panel with key switch
- Microprocessor controlled temperature and thawing regulation to maximize temperature stability
- Optical and acoustical alarm including power failure alarm
- Minimum/Maximum temperature memory
- Safety device to prevent freezing
- RS485 interface for computer-based temperature documentation
- Potential free contact for alarm transmission
- Height-adjustable drawers
- Individual drawer division with adjustable length and cross dividers.
- Low-noise compressor
- Glass doors are available for most models, as well as a decorative installation frame or door coupling fittings.
- Reduction in power consumption by up to 60%
- Faster response times in case of impending faults thanks to proactive alerts
- Data documentation can be read via USB interface with KIRSCH Datanet software
- Reduction in temperature deviations in the refrigerated compartment
- Maximum storage safety due to perfectly coordinated components
The Ultimate line offers on top of the Pro-Active line:
- Touch-Display, elegant glass design
- Simple operation via a capacitive touch display
- Access control with a log
- Graphical display of the temperature curve and min/max temperature
- Digital data documentation with KIRSCH Datanet software
- Quick-start
- Touch operation with laboratory gloves is possible
- Intuitive help with alarm messages and troubleshooting in plain text
DIN 58345 REGULATION
The "Refrigerators for pharmaceuticals DIN 58345" has been in force since September 2007. Requirements include: lockable door, operating temperature between +2 °C and +8 °C with reference measurement of the model series, acoustic and optical warning in the event of temperature deviation and power failure, safety features preventing temperatures below freezing, potential-free contact for remote warning etc.
|
MED 100 PRO-ACTIVE
The pharmaceutical refrigerator MED-100 is mainly installed in furniture. The compressor is dynamically ventilated. Air supply and discharge are done via a ventilating grille at the front. This permits an effortless installation (also as an under-counter type). When the device is intended to be used as a stand-alone unit we can optionally supply a work surface.
Also suitable for the storage of vaccines.
|
|
|
Capacity 95 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 75 Watt
Normal consumption 0,67 KWh / 24 h
Overall dimensions(incl. distance from wall) 54 x 54 x 82 (w x d x h in cm)
Overall dimensions with the door opened at 90° 54 x 105,5 (w x d in cm)
Drawer inner dimensions 40,8 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 43,8 x 33 (w x d in cm)
Max. loading capacity per drawer/shelf 13 kg / 25 kg
Weight 46 kg / 50 kg (net / gross)
(measured values based on Ecool R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
- 3 drawers, 1 shelf, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Undercounter type
- Warning in case of power failure (optical and acoustic)
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Melt water evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Low-noise compressor
- Lockable door
|
MED 126 PRO-ACTIVE
This pharmaceutical refrigerator can also be installed in furniture.
Also suitable for the storage of vaccines.
|
|
|
Capacity 120 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 105 Watt
Normal consumption 0,58 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 53,5 x 89 (w x d x h in cm)
Interior dimensions 44 x 42 x 67 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 105,5 (w x d in cm)
Drawer inner dimensions 40,8 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 43,8 x 33 (w x d in cm)
Max. loading capacity per drawer/shelf 13 kg / 25 kg
Weight 47 kg / 57 kg (net / gross)
(measured values based on Ecool R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
3 drawers, 1 shelf, height adjustable
- Antifreeze
- Warning in case of power failure (optical and acoustic)
- Recirculating air-cooling
- Automatic defrosting
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Low-noise compressor
- Lockable door
|
MED 200 PRO-ACTIVE
The pharmaceutical fridge features four plastic drawers and one shelf with support rails as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 1 adjustable length divider and 6 adjustable cross dividers.
Also suitable for the storage of vaccines.
|
|
|
Capacity 170 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 155 Watt
Normal consumption 0,76 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 54,6 x 122 (w x d x h in cm)
Interior dimensions 43 x 43 x 87 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 105 (w x d in cm)
Drawer inner dimensions 38 x 34 x 6 (w x d x h in cm)
Max. loading capacity per drawer 13 kg
Weight 69 kg / 80 kg (net / gross)
(measured values based on Ecool R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
- 4 plastic drawers
- 1 Shelf with support rails
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Warning in case of power failure (optical and acoustic)
- Microprocessor controlled temperature and thawing regulation to maximize temperature stability
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Safety control prevents freezing
- Potential free contact for alarm transmission
- Lockable door
|
MED 288 PRO-ACTIVE
The pharmaceutical fridge features five vertically adjustable drawers made of plastic as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 9 adjustable cross dividers.
|
|
|
Capacity 280 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 100 Watt
Normal consumption 0,69 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 75 x 124 (W x D x H in cm)
Interior dimensions 53 x 50 x 100 (W x D x H in cm)
Overall dimensions with door opened at 90° 67 x 135 (W x D in cm)
Drawer inner dimensions 50 x 32 x 5,6 (W x D x H in cm)
Max. loading capacity per drawer 16 kg
Weight 75 kg / 88 kg (net / gross)
(measured values based on Ecol R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
- 5 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easy accessible control panel with key switch
- Microprocessor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|

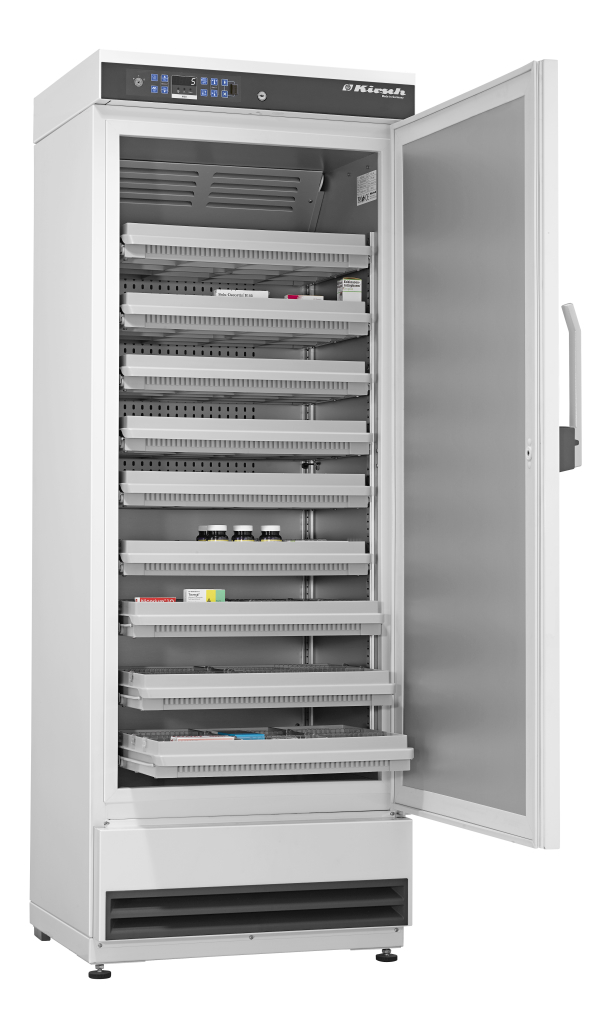

MED 340 PRO-ACTIVE
The pharmaceutical fridge features 9 vertically adjustable drawers made of plastic as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 9 adjustable cross dividers.
|
|
|
Capacity 330 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 108 Watt
Normal consumption 0,82 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 63,5 x 181 (W x D x H in cm)
Interior dimensions 53 x 45 x 128 (W x D x H in cm)
Overall dimensions with door opened at 90° 67 x 126 (W x D in cm)
Drawer inner dimensions 50 x 32 x 5,6 (W x D x H in cm)
Max. loading capacity per drawer 16 kg
Weight 100 kg / 113 kg (net / gross)
(measured values based on Ecol R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
- 9 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Microprocessor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|
MED 468 PRO-ACTIVE
The pharmaceutical fridge features 10 vertically adjustable drawers made of plastic as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 12 adjustable cross dividers.
|
|
|
Capacity 460 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 190 Watt
Normal consumption 0,91 KWh / 24 h
Overall dimensions (incl. distance from wall) 74 x 79,5 x 181 (W x D x H in cm)
Interior dimensions 60 x 57 x 128 (W x D x H in cm)
Overall dimensions with door opened at 90° 74 x 144 (W x D in cm)
Drawer inner dimensions 57 x 43 x 5,6 (W x D x H in cm)
Max. loading capacity per drawer 24 kg
Weight 130 kg / 143 kg (net / gross)
(measured values based on Ecol R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
- 10 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Microprocessor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|

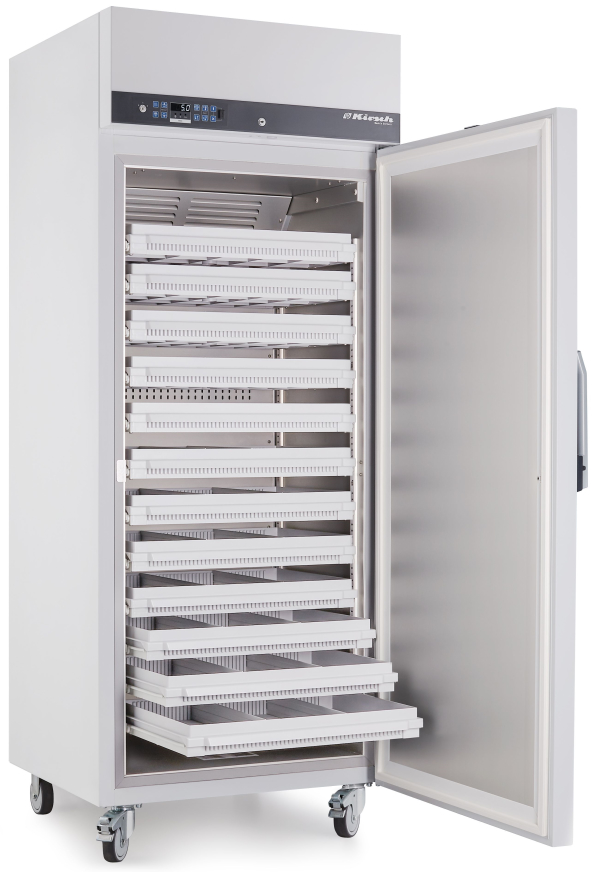

MED 520 PRO-ACTIVE
The pharmaceutical fridge features 12 vertically adjustable drawers made of plastic as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 12 adjustable cross dividers.
|
|
|
Capacity 500 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 260 Watt
Normal consumption 1,5 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 76 x 195,5 (W x D x H in cm)
Interior dimensions 60 x 57 x 140 (W x D x H in cm)
Overall dimensions with door opened at 90° 77 x 144 (W x D in cm)
Drawer inner dimensions 57 x 39 x 5,6 (W x D x H in cm)
Max. loading capacity per drawer 24 kg
Weight 120 kg / 147 kg (net / gross)
(measured values based on Ecol R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
- 12 drawers, height adjustable
- Castors
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|

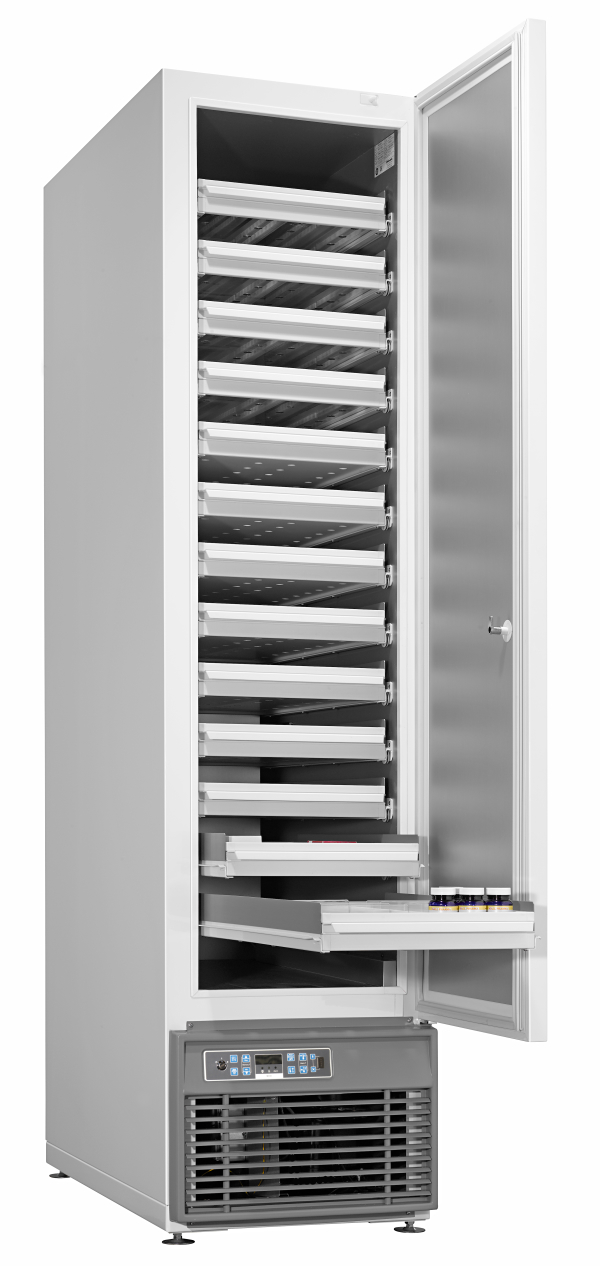

MED 600 PRO-ACTIVE
Due to the special measurements, this pharmaceutical fridge is ideal for complementing pharmacies’ furniture which features long drawers. The drawers have a transparent bottom so you can see at a glimpse what is inside. A decorative door frame for attaching decorative panels is available at a surcharge.
* Picture with 13 drawers
|
|
|
Capacity 600 l
Temperature setting (approx.) +2 to +15°C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 340 Watt
Normal consumption 3,20 KW / 24 h
Overall dimensions (incl. distance from wall) 51 x 100 x 212 - 215 (w x d x h in cm)
Interior dimensions 39 x 90 x 160 (w x d x hin cm)
Usable dimensions 39 x 78 x 160 (w x d x h in cm)
Overall dimensions with pulled out drawers 51 x 164 (w x d in cm)
Drawer inner dimensions (2x) 33 x 33,6 x 7 (w x d x h in cm)
Max. loading capacity per drawer 22 kg
Weight 170 kg / 200 kg (net / gross)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensor
- 12 drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|
MED 720 PRO-ACTIVE
The pharmaceutical fridge features 12 vertically adjustable drawers made of aluminium as standard equipment. The drawers rest on telescopic runners and have a locking element. Each drawer has 2 adjustable length dividers and 9 adjustable cross dividers.
|
|
|
Capacity 700 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 250 Watt
Normal consumption 1,55 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 98 x 195,5 (W x D x H in cm)
Interior dimensions 62 x 77 x 140 (W x D x H in cm)
Overall dimensions with door opened at 90° 77 x 165 (W x D in cm)
Drawer inner dimensions 57 x 60 x 6 (W x D x H in cm)
Max. loading capacity per drawer 24 kg
Weight 164 kg / 190 kg (net / gross)
(measured values based on Ecol R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
- 12 aluminium drawers, height adjustable
- Individual drawer division with adjustable length and cross dividers.
- Recirculating air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Automatic defrosting
- Meltwater evaporation
- Easy-to-read LED temperature display
- Easily accessible control panel with key switch
- Micro-processor controlled temperature and thawing regulation to maximize temperature stability
- Minimum/Maximum temperature memory
- Safety control prevents freezing
- Optical and acoustical alarm including power failure alarm
- Potential free contact for alarm transmission
- Data documentation can be read via USB interface with KIRSCH Datanet software.
- Lockable door
|
|
Pharmaceutical Freezers
Thanks to their robust design and technical equipment, pharmaceutical freezers from KIRSCH are top-quality products that need an absolute minimum of routine maintenance and are produced by high-volume methods.
Model Specific Features
They stand out particularly thanks to their thick housing insulation made of high-quality, pressure-foamed, environmentally compatible material and guarantee low energy consumption.
Depending on the individual model, the operating temperature is maintained automatically either by an interior thermostat or an electronic micro-processor controlled temperature regulator with digital display, even in the event of changing ambient temperatures.
|
FROSTER MED 95 PRO-ACTIVE
The Pharmaceutical Freezer FROSTER-MED-95 is being used as an integrated or undercounter type freezer or as a stand-alone model. The compressor is dynamic ventilated. Air supply and discharge is done via a ventilating grille at the front. This permits an effortless installation (also as an undercounter type)
|
|
|
Capacity 95 l
Temperature setting (approx.) -5 to -25 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 123 Watt
Normal consumption 1,33 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 54 x 82 (w x d x h in cm)
Interior dimensions 44 x 42 x 47 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 105,5 (w x d in cm)
Drawer inner dimensions 40,8 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 43,8 x 36 (w x d in cm)
Max. loading capacity per drawer/shelf 13 kg / 25 kg
Weight 50 kg / 54 kg (net / gross)
(measured values based on Ecool R600a)
|
- PRO-ACTIVE- Control:
Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
- 1 drawer and 2 shelves
- Undercounter type
- Heated door frame
- Rapid freezing cycle
- Digital temperature display
- Key switch
- Minimum/Maximum temperature memory
- Optical and acoustic warning device
- Potential free contact and interface RS485
- Low-noise compressor
- Lockable door
|
